Famille Hyper
  • AIR CONDITIONING (VCS / ECS)
  • ENGINE SCAVENGE
  • AVIONICS COOLING
  • SMOKE EXTRACTOR
  • PODS
  • AIR RECIRCULATION
  • AIRBORNE RADAR
  • UAV / UCAV

AC 400 Hz - DC BRUSHLESS WILD FREQUENCY
LMB HIGH PERFORMANCE FANS offer innovative cooling solutions for aerospace, naval and military applications. From 80mm (3 in.) up to 300mm (12 in.), we can propose a large range of high reliability products with optimised weight and low noise level.
These LMB products incorporate many possible features such as speed sensors, speed control, failure detection, current limitation, and many other customised and bespoke applications.
LMB HIGH PERFORMANCE FANS are qualified against different standard: MIL-STD-810, MIL-STD-704, RTCA DO160, DEF STAN, ABD100, BS 3G.100.
LMB HIGH PERFORMANCE FANS can be supplied with IP68 protection.

Hyper 75

HYPER 75

Main Characteristics
Physical envelope:
 3.14" Dia x 3.14" L
Materials: housing and impeller in alluminum alloy.
Qualification: military and commercial
Application: special design for scavenge and ventilation application

Hyper 75

HYPER 75 04

Main Characteristics
Physical envelope:
 3.86" Dia x 3.15" L
Materials: housing and impeller in alluminum alloy.
Qualification: military and commercial
Application: special design for scavenge and ventilation application

Maximum

MELBA

Main Characteristics
Physical envelope: 3.12" Dia x 4" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

Hyper 80-05

HYPER 80

Main Characteristics
Physical envelope:
 3.94" Dia x 5.12" L
Materials: housing and impeller in alluminum alloy.
Qualification: military and commercial
Application: special design for avionic cooling and ECS

Hyper 85

HYPER 85

Main Characteristics
Physical envelope:
 3.3" Dia x 6.81" L
Materials: housing and impeller in alluminum alloy.
Qualification: military and commercial
Application: special design for scavenge and ventilation application

Hyper95

HYPER 95

Main Characteristics
Physical envelope:
4.87" Dia x 5.85" L
Materials: housing and impeller in alluminum alloy.
Qualification: military and commercial
Application: special design for scavenge and ventilation application

Hyper 96

HYPER 96

Main Characteristics
Physical envelope:
 3.85" Dia x 6.77" L
Materials: housing and impeller in alluminum alloy.
Qualification: military and commercial
Application: special design for scavenge and ventilation application

Hyper 97

HYPER 97

Main Characteristics
Physical envelope:
 4.01" Dia x 6.69" L
Materials: housing and impeller in alluminum alloy.
Qualification: military and commercial
Application: special design for avionic cooling and ECS

Hyper 115

HYPER 115

Main Characteristics
Physical envelope:
5.82" Dia x 6.27" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling

Hyper115-04

HYPER 115 04

Main Characteristics
Physical envelope:
5.5" Dia x 7.48" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling, scavenge and smoke extractror

Ginkgo

GINKGO

Main Characteristics
Physical envelope: 5.31" Dia x 3.14" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for electronics cooling and Air Conditionning Systems

Laurion

LAURION

Main Characteristics
Physical envelope:
 5.74" Dia x 6.18" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and ventilation application

Lorentz

LORENTZ

Main Characteristics
Physical envelope:
 5.70" Dia x 5.11" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Layon

LAYON

Main Characteristics
Physical envelope:
 5.15" Dia x 5.27" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling, scavenge and ventilation application

Hyper 120-08

HYPER 120

Main Characteristics
Physical envelope:
 4.8" Dia x 5.11" L
Materials: housing and impeller in alluminum alloy.
Qualification: military and commercial
Application: special design for avionic cooling

Hyper 140

HYPER 140

Main Characteristics
Physical envelope:
 6.89" Dia x 5.56" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

MX150

MX150

Main Characteristics
Type: envelope:
 Mixflow Fan
Physical envelope: 6.72" Dia x 6.82" L
Materials: housing and impeller in alluminum alloy.
Qualification: military and commercial
Application: special design for avionic cooling ,ECS and scavenge application

Hyper 150

HYPER 150

Main Characteristics
Physical envelope:
 6.45" Dia x 6.62" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper150-01

HYPER 150 01

Main Characteristics
Physical envelope:
 7.75" Dia x 7.51" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: Engine cooling and scavenge application

Hyper155

HYPER 155

Main Characteristics
Physical envelope:
 6.77" Dia x 9.96" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper 160-1

HYPER 160

Main Characteristics
Physical envelope:
 6.54" Dia x 9.05" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper 140

HYPER 160 01

Main Characteristics
Physical envelope:
 7.83" Dia x 8.66" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper 165-02

HYPER 165

Main Characteristics
Physical envelope:
 9.35" Dia x 5.51" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper 170

HYPER 170

Main Characteristics
Physical envelope:
 6.96" Dia x 6.69" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper 170

HYPER 170 02

Main Characteristics
Physical envelope:
 6.96" Dia x 6.69" L
Materials: impeller in PEEK and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper 180

HYPER 180

Main Characteristics
Physical envelope:
 8.26" Dia x 11.22" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper 185

HYPER 185

Main Characteristics
Physical envelope:
 7.24" Dia x 7.87" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper 190-08

HYPER 190

Main Characteristics
Physical envelope:
 7.71" Dia x 7.44" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling, scavenge and ECS application

Hyper 200

HYPER 200

Main Characteristics
Physical envelope:
 8.26" Dia x 9.52" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper 205

HYPER 205

Main Characteristics
Physical envelope:
 7.76" Dia x 3.35" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper_250

HYPER 250

Main Characteristics
Physical envelope:
 11.81" Dia x 7.87" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

Hyper 260

HYPER 260

Main Characteristics
Physical envelope:
 10.62" Dia x 7.87" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling and scavenge application

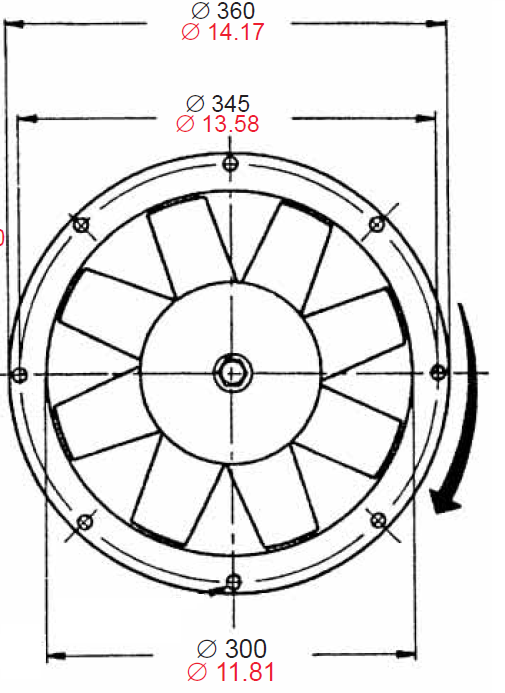

Fiction site web Dim

FICTION

Main Characteristics
Physical envelope:
 14.17" Dia x 6.69" L
Materials: impeller and housing in alluminum alloy.
Qualification: military and commercial
Application: avionic cooling, scavenge and ECS application
