Products - OPTIFANS DC

Famille Optifan
  • AVIONICS COOLING
  • CABIN TEMPERATURE SENSOR
  • PODS MISSILES
  • AIRBORNE RADARS
  • COUNTER MESURE SYSTEMS
  • RACK AND BAY VENTILATION
  • UAV / UCAV

DC BRUSHLESS
LMB OPTIFANS offer innovative cooling solutions for aerospace, naval and military applications. From 25mm (1 in.) up to 80mm (3.15 in.), we can propose a large range of high reliability products with optimised weight and low noise level.
These LMB products incorporate many possible features such as speed sensors, failure detection, low speed warning.
LMB OPTIFANS are qualified against different standard: MIL-STD-810, MIL-STD-704, MIL-STD-461, RTCA DO160.
LMB OPTIFANS can be supplied with IP68 protection.

Optifan 30

OPTIFAN 30

Main Characteristics
Physical envelope: 1.303" Dia x 1.77" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

Optifan 40

OPTIFAN 40

Main Characteristics
Physical envelope: 1.75" Dia x 1.5" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

Optifan 40

OPTIFAN 41

Main Characteristics
Physical envelope: 1.75" Dia x 1.57" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

optifan44

OPTIFAN 44

Main Characteristics
Physical envelope: 2.18" Dia x 1.53" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

Optifan 45

OPTIFAN 45

Main Characteristics
Physical envelope: 2.18" Dia x 1.84" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

Optifan 65

OPTIFAN 65

Main Characteristics
Physical envelope: 3.00" Dia x 2.66" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

Optifan 70

OPTIFAN 70

Main Characteristics
Physical envelope: 3.25" Dia x 1.62" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

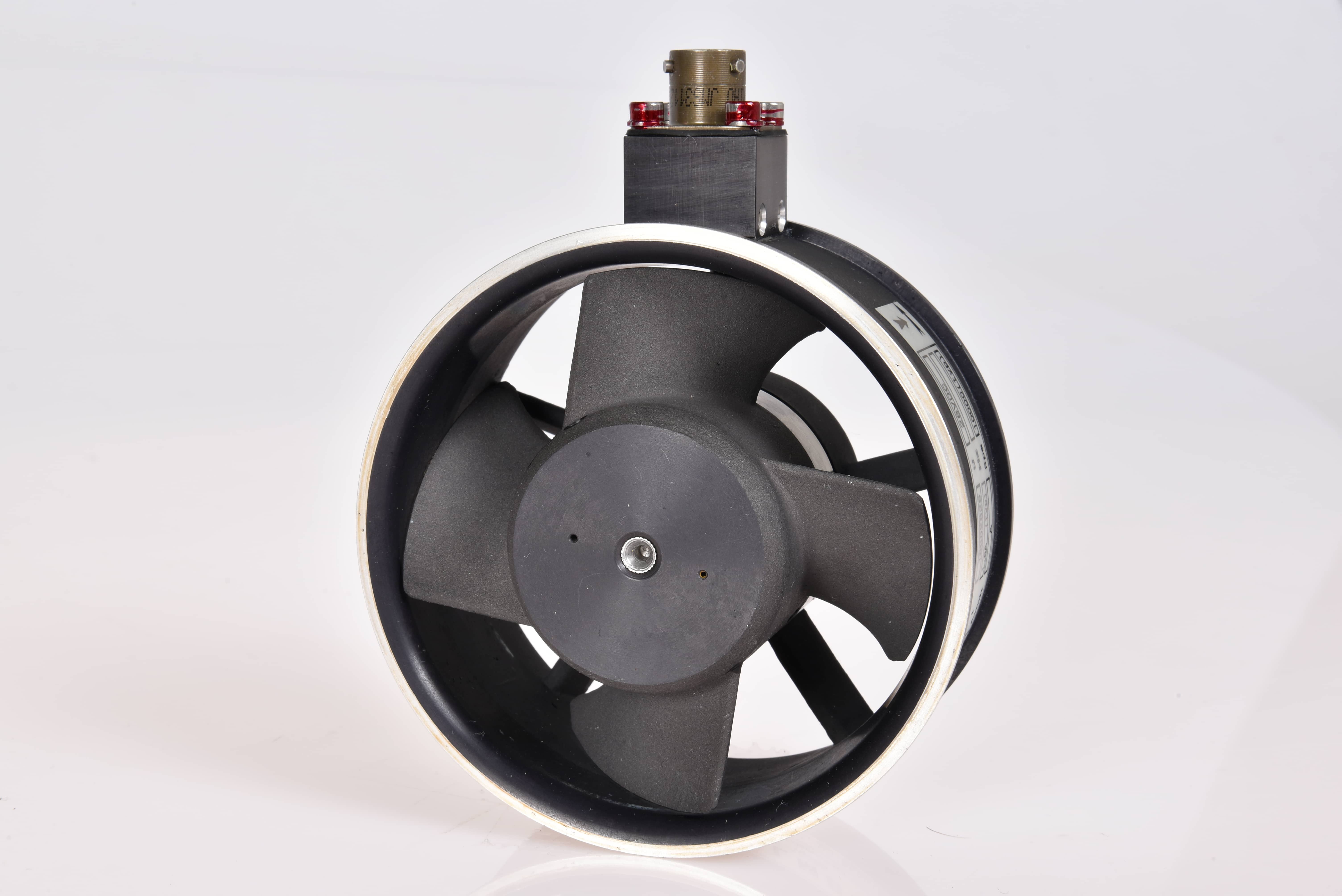

Optifan 75

OPTIFAN 75

Main Characteristics
Physical envelope:
3.75" Dia x 2.28" L
Materials: housing and impeller in alluminum alloy.
Finishes:
black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

Optifan 75

OPTIFAN 75 NHD

Main Characteristics
Physical envelope:
3.75" Dia x 2.28" L
Materials: housing and impeller in alluminum alloy.
Finishes:
black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

LMB image place holder

OPTIFAN 76

Main Characteristics
Physical envelope: 3.75" Dia x 2.28" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

Optifan 80

OPTIFAN 80

Main Characteristics
Physical envelope: 3.62" Dia x 3" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

Optifan 85 Redim

OPTIFAN 85

Main Characteristics
Physical envelope: 5.12" Dia x 3.35" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for cooling of electronics, optics and lasers

Optifan 145

OPTIFAN 145

Main Characteristics
Physical envelope: 6.75" Dia x 2" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: specialy design for cooling of electronics in shipboard and submarine rack applications, and Telecom and Datacom racks

Optifan 145 NMS

OPTIFAN 145 NMS

Main Characteristics
Physical envelope: 6.75" Dia x 2" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: specialy design for cooling of electronics in shipboard and submarine rack applications, and Telecom and Datacom racks

2D Captal

CAPTAL

Main Characteristics
Physical envelope: 9.42" Dia x 5.51" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for electronics cooling and air conditionning systems

2D Capron

CAPRON

Main Characteristics
Physical envelope: 9.43" Dia x 5.55" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for electronics cooling

2D Florin

FLORIN

Main Characteristics
Physical envelope: 14.17" Dia x 6.69" L
Materials: housing and impeller in alluminum alloy.
Finishes: black anodized coating per MIL-A-8625
Qualification: military and commercial
Application: special design for electronics cooling
